Safety: tactile floors for the visually impaired Caesar Ceramics USA, Tiles, slabs and technical solutions

The Caesar floors for use as tactile paths are based on a system comprising raised surfaces already used at international level and specifically designed to be easily identified underfoot or with a white stick, but also visibly different to the rest of the flooring. Installed over the planking level, the flooring allows the blind and partially-sighed to orientate themselves and identify places and potential sources of dangers, as required by law.

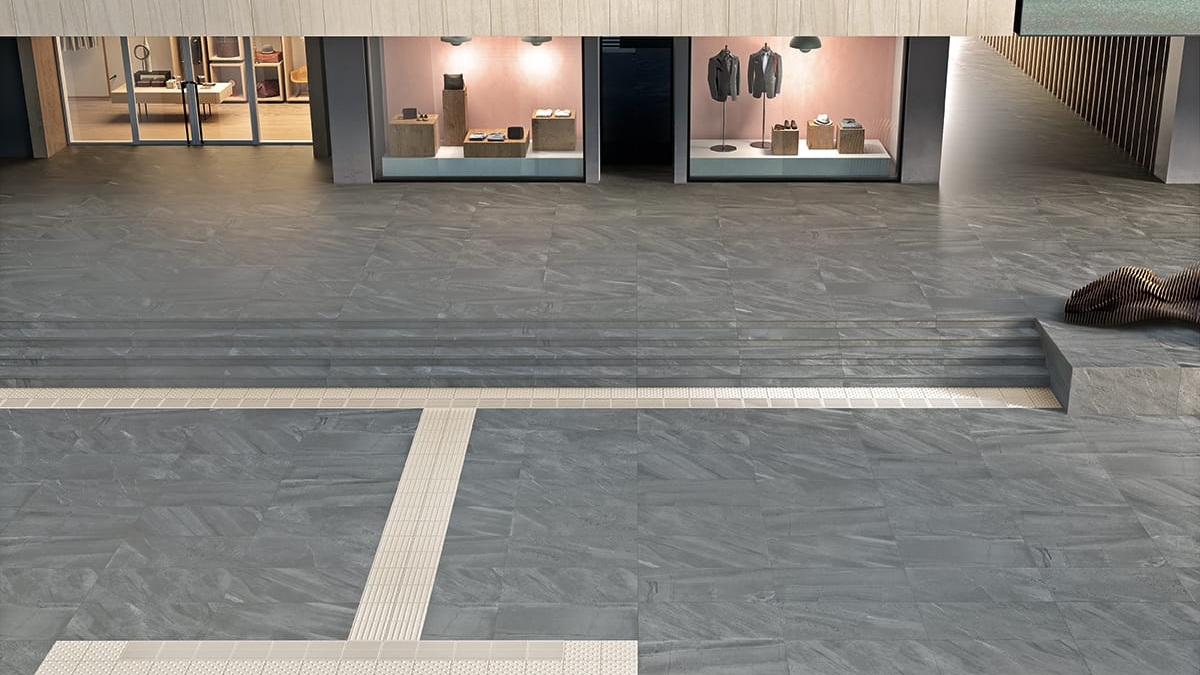

caesar percorsi tattili gres porcellanato

Percorsi tattili: una guida sicura con le soluzioni Caesar

I pavimenti tattili di Caesar si compongono di superfici dotate di rilievi, percepibili al passaggio, per consentire ai non vedenti e agli ipovedenti di orientarsi nei luoghi e riconoscere distintamente gli ostacoli e le altre eventuali fonti di pericolo lungo il percorso.

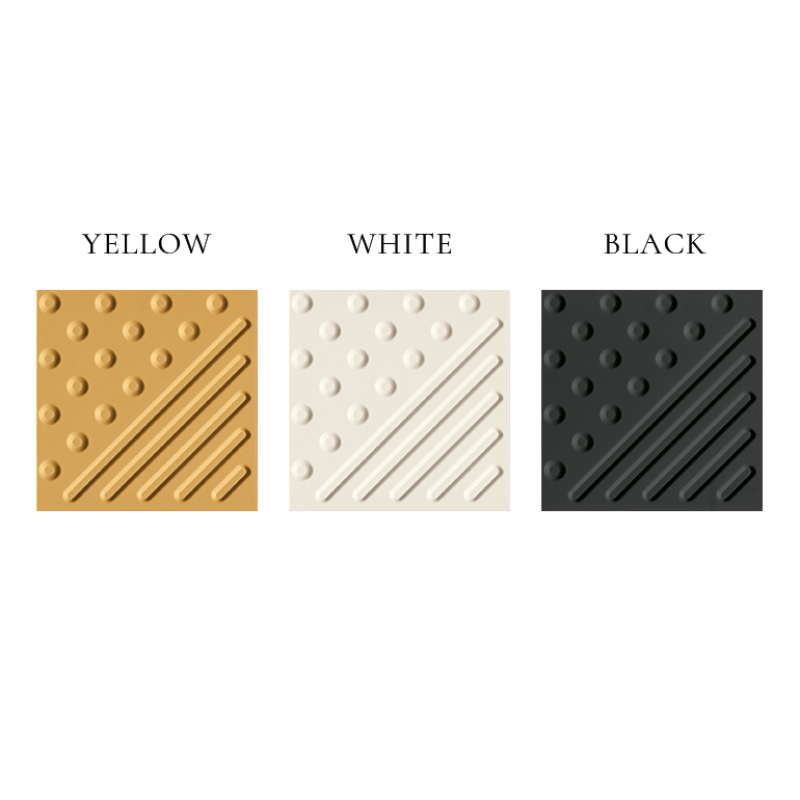

30x30 range

Alt

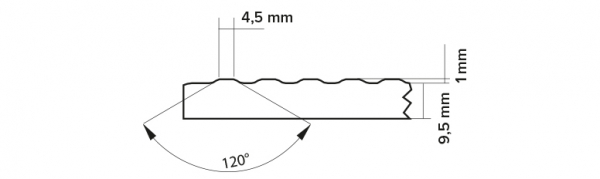

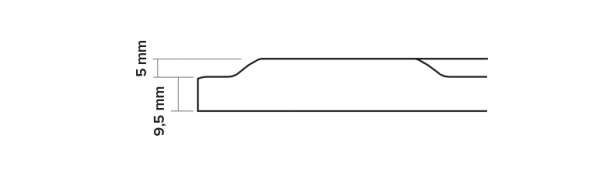

Alt Sezione3

Go

GO Sezione

Cross

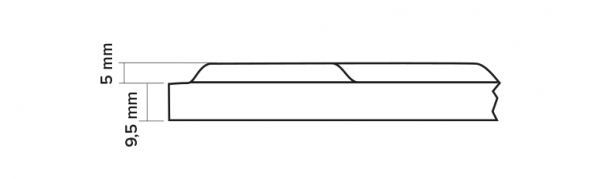

Cross Sezione

Stop

Stop Sezione

Safety paths

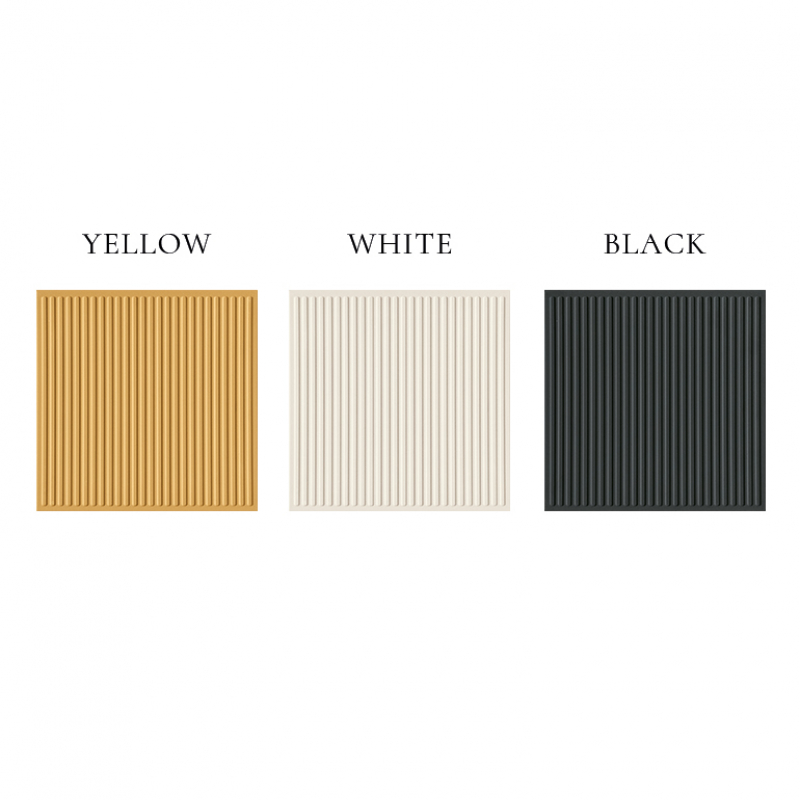

The system consists of six codes, suitable to create complete paths for the visually impaired,maintaining the quality features of Caesar 'Made in Italy' porcelain stoneware tiles.

Download

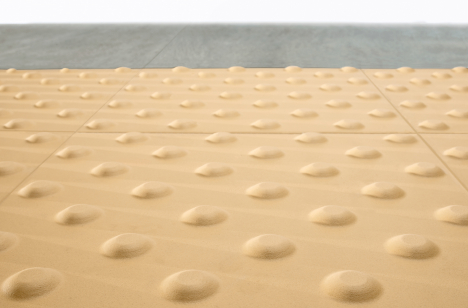

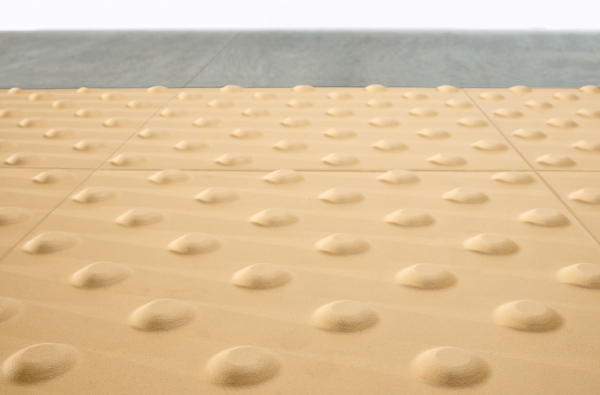

Uncrossable potential danger

Made up of semispherical staggered segments (“ALT” modules) that can be identified using the white stick. This system must be placed where there are potential un-crossable dangers, such as, for example, the edge of railway platform

Ambiente Invalicabile

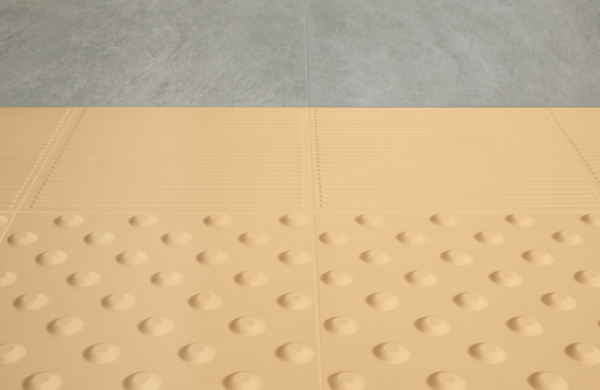

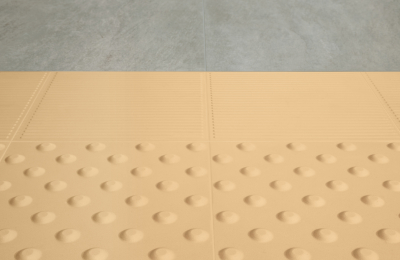

Crossable potential danger

Made up of “ALT” and “GO” modules, used to indicate crossable dangers such as stairs of pedestrian paths.

Ambiente Valicabile

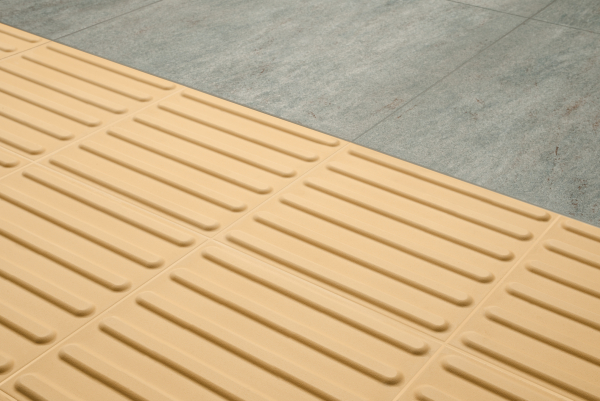

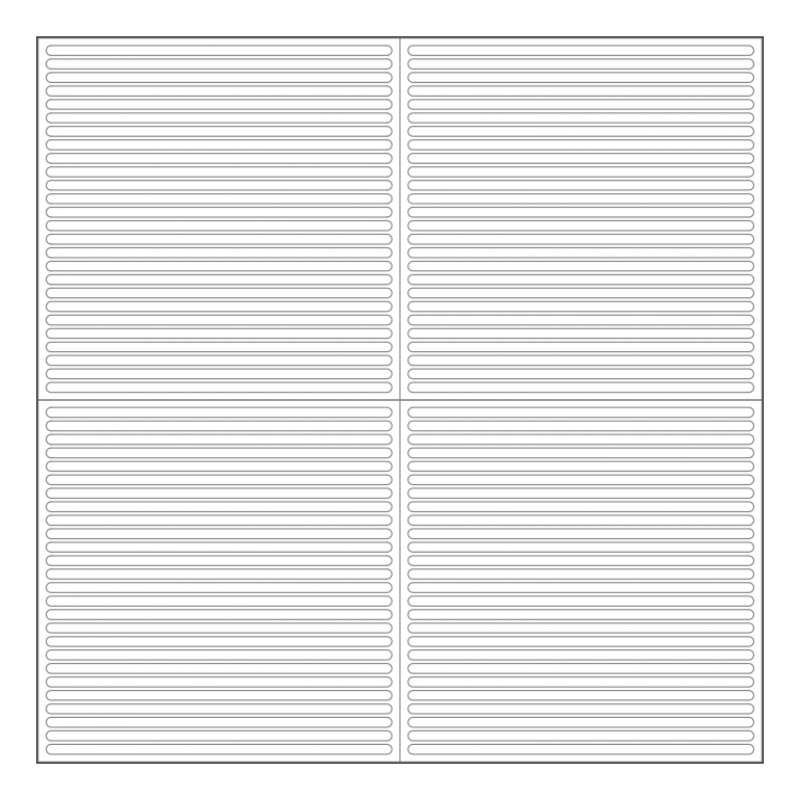

Straight direction

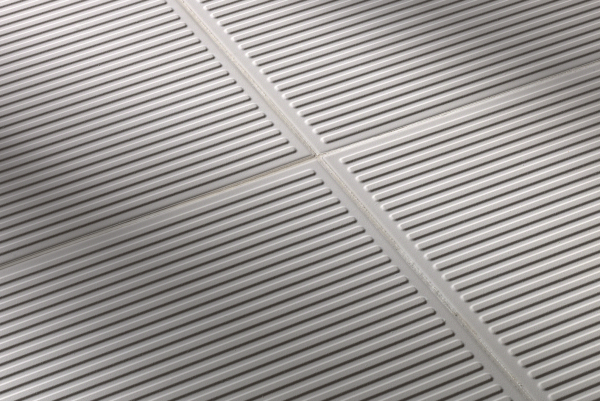

Made of straight stripes in relief on the surface (“GO” modules) that are used to show the path via the tactile sense of the foot.

Ambiente Rettilineo

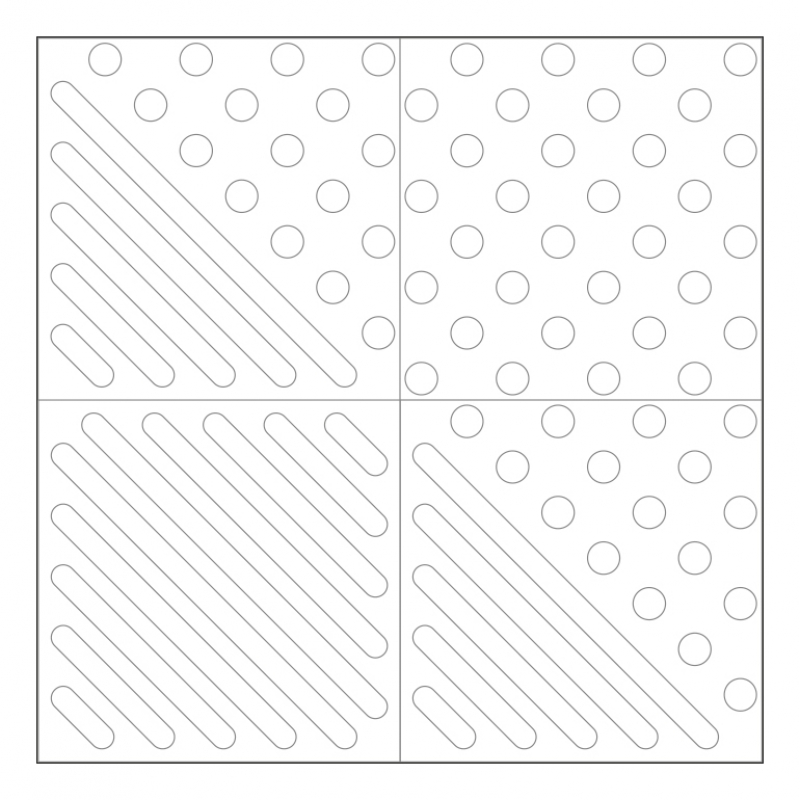

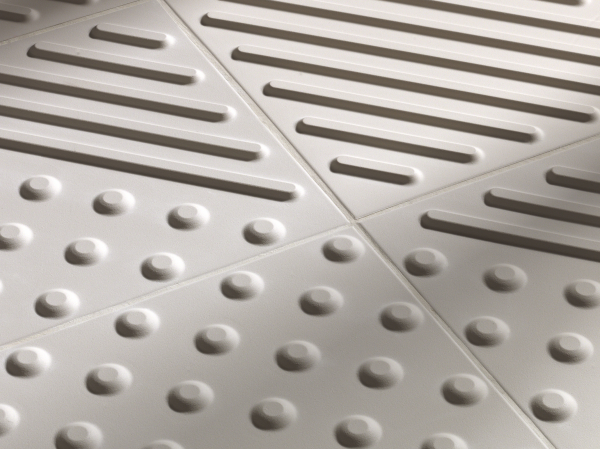

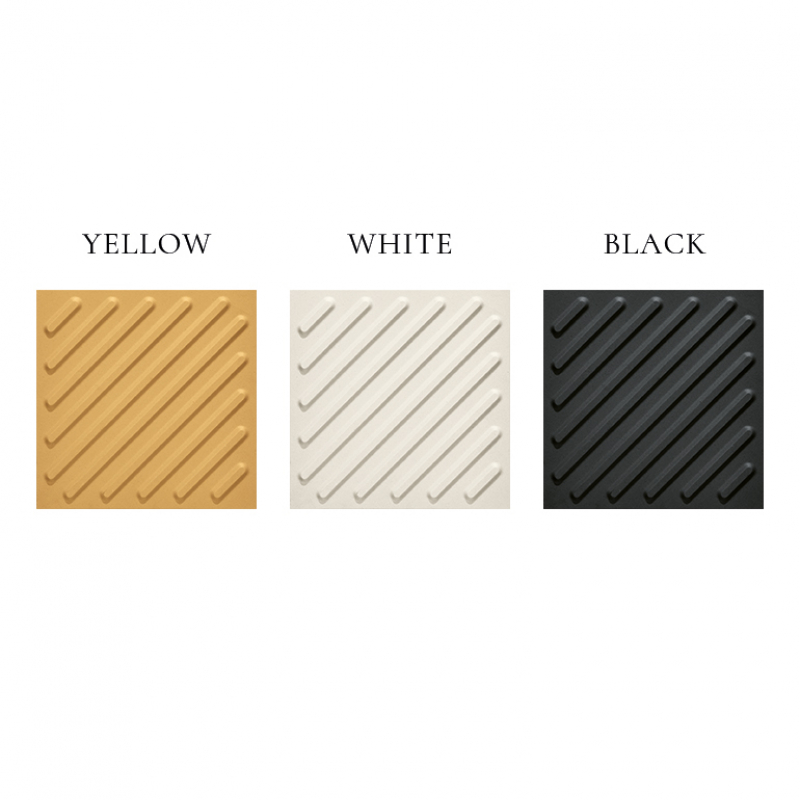

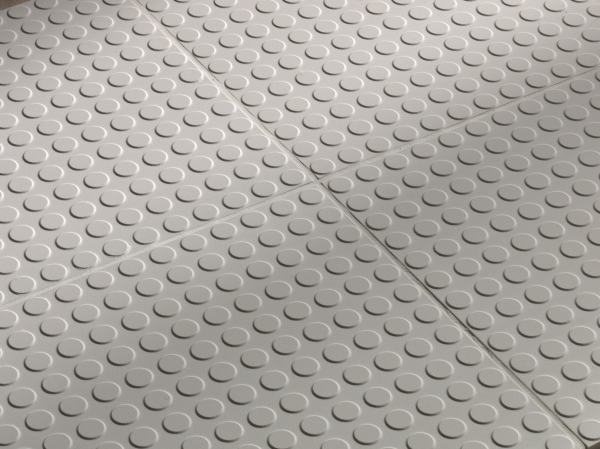

Crossroads / “L” turn

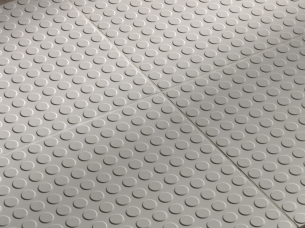

Made up of semi-spherical, flat and aligned segments (“CROSS” modules) and used at crossroads.

Ambiente Incrocio

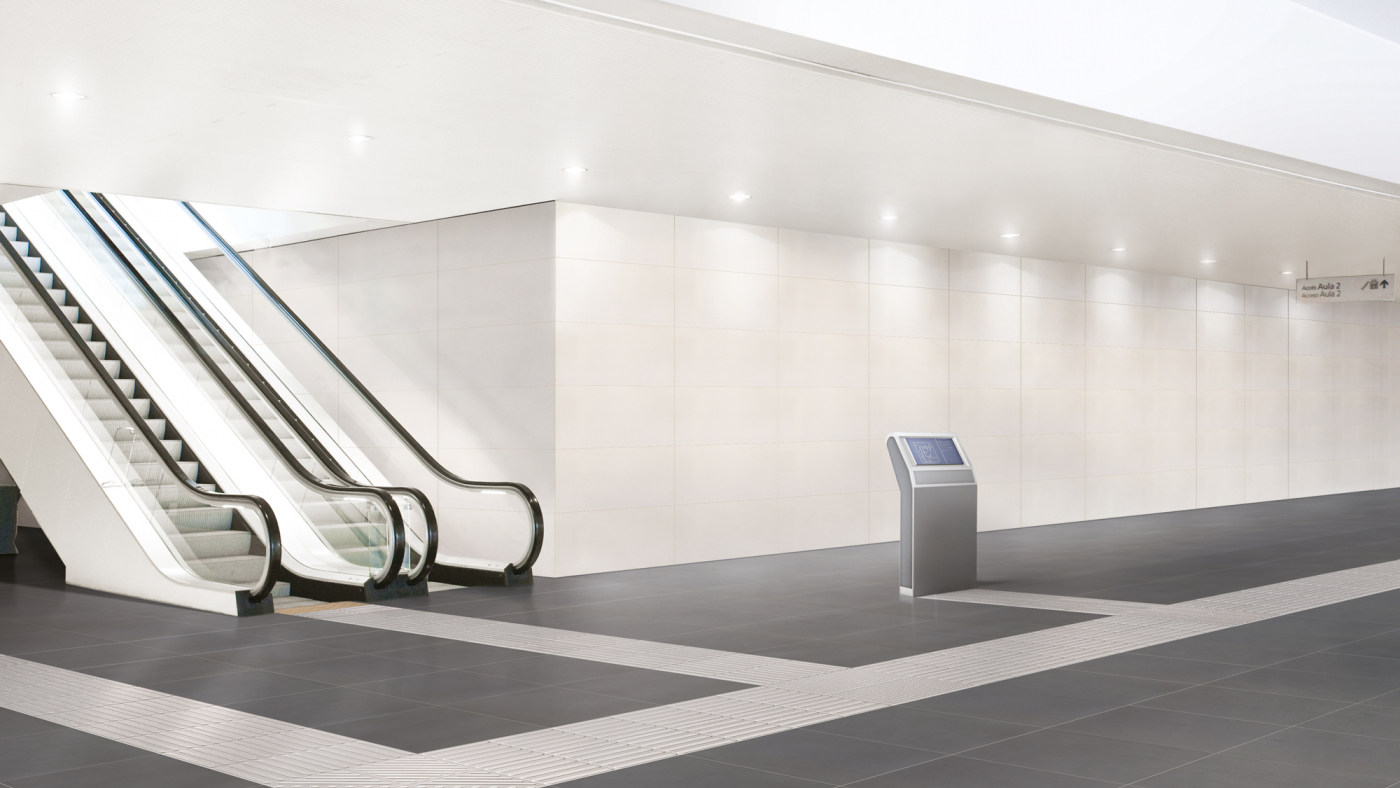

A guide for the visually impaired

piazzale multiformato safety cover Wells 60x120 2 3

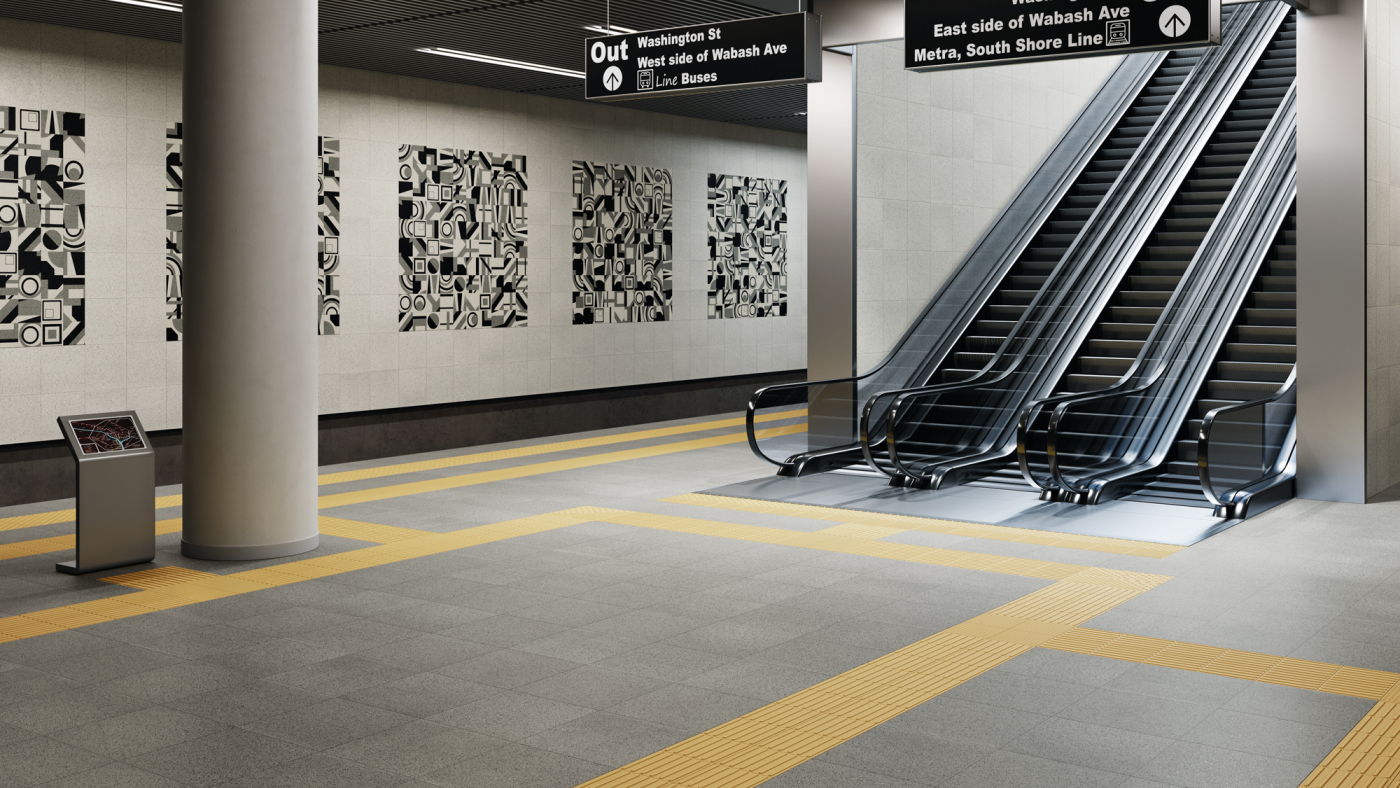

Being able to move freely through public buildings and spaces, while at the same time being made fully aware of the possible dangers, is a fundamental right of every citizen, even though architectural barriers still limit the access to some services and the social interaction of the visually impaired.

This situation has forced governments to legislate for the full accessibility to public areas, such as pavements and sidewalks, squares, stations and shopping malls.

When project-planning a building, it is therefore necessary to foresee an artificial path guide for the visually impaired to guarantee their independence and safety, a flooring system such as SAFETY, a special flooring designed and created by Caesar to satisfy these important requirements.

Caesartech Catalog-Safety section
Download
