AEleva: floating porcelain tile floors

The creation of a technical space beneath the floor is an innovative and increasingly popular solution in indoor and outdoor environments, allowing for the housing of various equipment and providing easy access if any repairs or replacements are required.

The AEleva floating floors comprise raised flooring modules, created with Caesar porcelain slabs, and a substructure to support said modules.

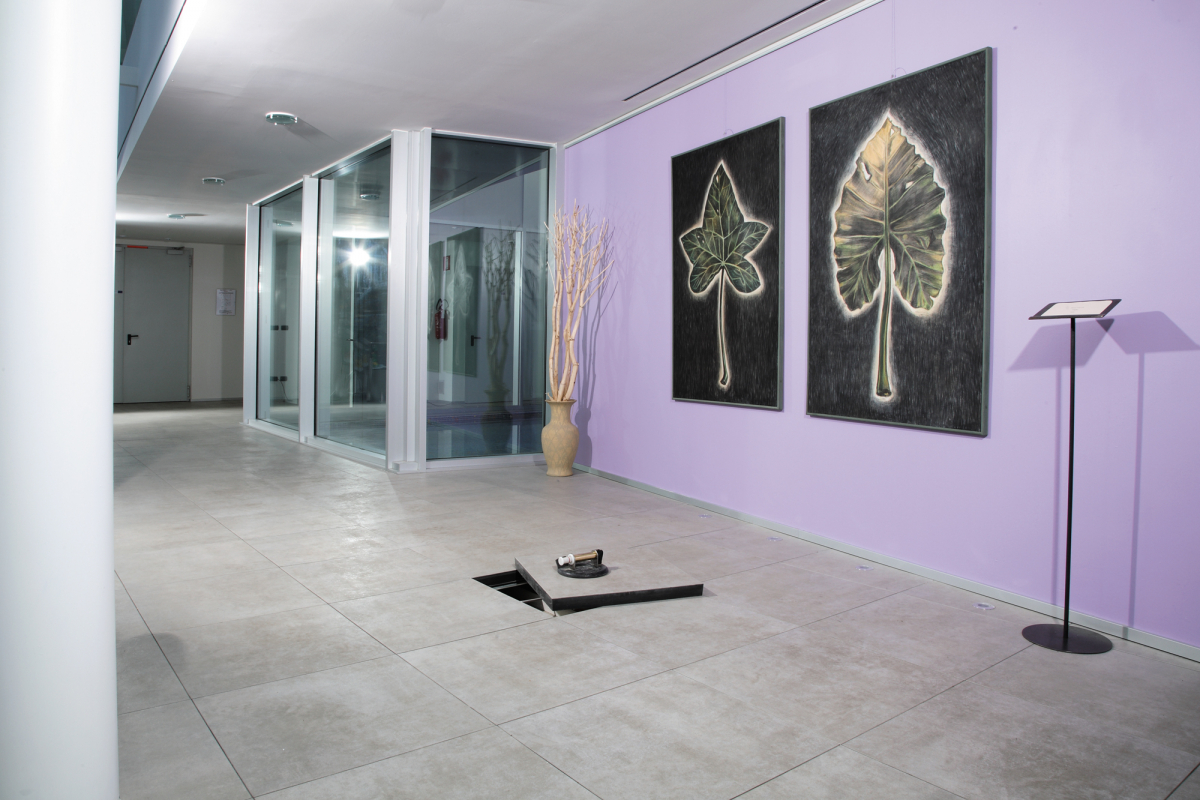

AEleva: floating floors for offices with a technical space

In offices, central offices, banks, data centres and many other workplaces, technological equipment and systems are continually improved and updated, which results in a need to update wiring or carry out maintenance, from electrical or phone networks to heating and air-conditioning systems. In these situations, and also in outdoor environments, AEleva floating floors are ideal, in that the planking floor, composed of panels that can be easily removed for inspection, is raised from the screed, and the resulting technical space can be of a height that varies between a few centimetres to a metre.

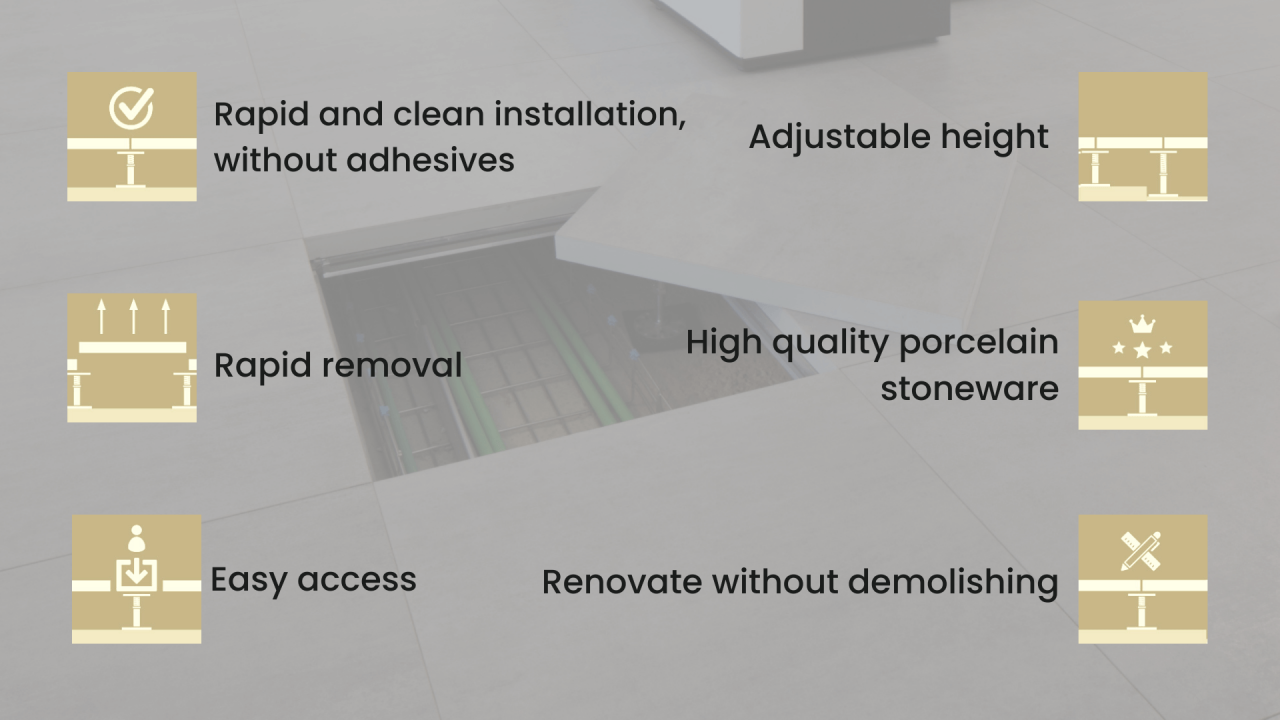

The advantages of AEleva

Rapid and clean installation, no glues
Installazione
High quality porcelain tile
Gres porcellanato AEleva
Rapid removal
Rimozione
Accessibility
Accessibilita2
Adjustable height
Altezza
Restyling without dismantling

Raised modules

Upper surface layer

1) Upper ceramic cladding

2) Structural core: sulphate or chipboard

3) Lower surface layer

4) Perimetral border

Substrate

5) Base

6) Crosspieces

7) Gaskets

8) Sound-absorbing cloth

Raised module with Æxacta

The modules with steel panels of the Æleva system allow you to complete encapsulated raised floors with a rich assortment of finishes of the Æxacta range. Æleva is an ideal solution in this field of application too since it is removable and replaceable at any moment. Moreover, it ensures excellent results both in terms of appearance and of performance.

temporary raised floor

Æxtra20 raised modules for outdoor installation

Æleva raised floors can also be built in exterior environments, using the 20 mm thick slabs of Caesar's Æxtra20 line, available in a vast assortment of sizes. Æxtra20 slabs have an exceptional resistance to loads, wear, abrupt temperature changes and atmospheric agents; they also have excellent slip-proof properties, which are essential when it comes to outdoor installation, and guarantee a high standard of aesthetics, which remains stable over time. For detailed information, see the Æxtra20 line catalogue.

Support sheet

AExtra20 Range

In offices and commercial spaces, technological networks and systems often need to be completed or updated; in the same manner, in outdoor contexts, one often has the need to cover irrigation pipes or electrical cables. The creation of a technical 'clearance' under the floor is an ideal solution for these needs.

AextraFloor

AextraFloor is the new solution by Caesar for outdoor raised floors with dry installation. The system achieves top compositional freedomof Aextra20 tiles, multi-size installations included. The substructure is formed by a grating originating a planar surface, stable and sureobtained through an interlocking system. AextraFloor is among the best solutions for gardens, courtyards and patios, both in living and commercial premises, being easy and quick to install.
